气凝胶NF-M隔热膜

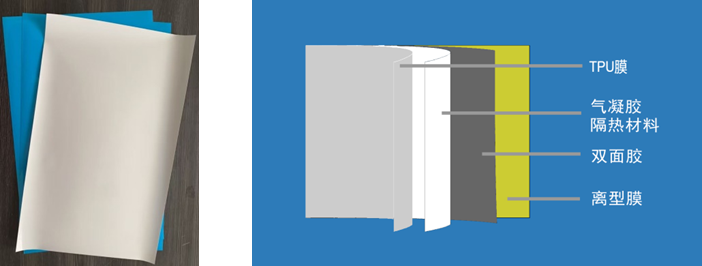

         卓纳纳米气凝胶NF-M隔热膜,是在NF-T隔热膜的基础上,在气凝胶隔热材料表面覆上了一层保护膜,可避免气凝胶隔热膜表面因摩擦或碰撞产生划痕;防止灰尘、指纹、油渍等污染物附着;也能够阻隔湿气和氧气,防止气凝胶隔热材料在储存期间受潮或氧化,维持其纳米多孔结构和隔热效率。

         Zhuona nano aerogel NF-M thermal insulation film is based on NF-T thermal insulation film, and a layer of protective film is coated on the surface of aerogel thermal insulation material, which can avoid scratches on the surface of aerogel thermal insulation film due to friction or collision; Prevent the attachment of pollutants such as dust, fingerprints, and oil stains; It can also block moisture and oxygen, prevent the aerogel insulation material from being damped or oxidized during storage, and maintain its nano porous structure and heat insulation efficiency.

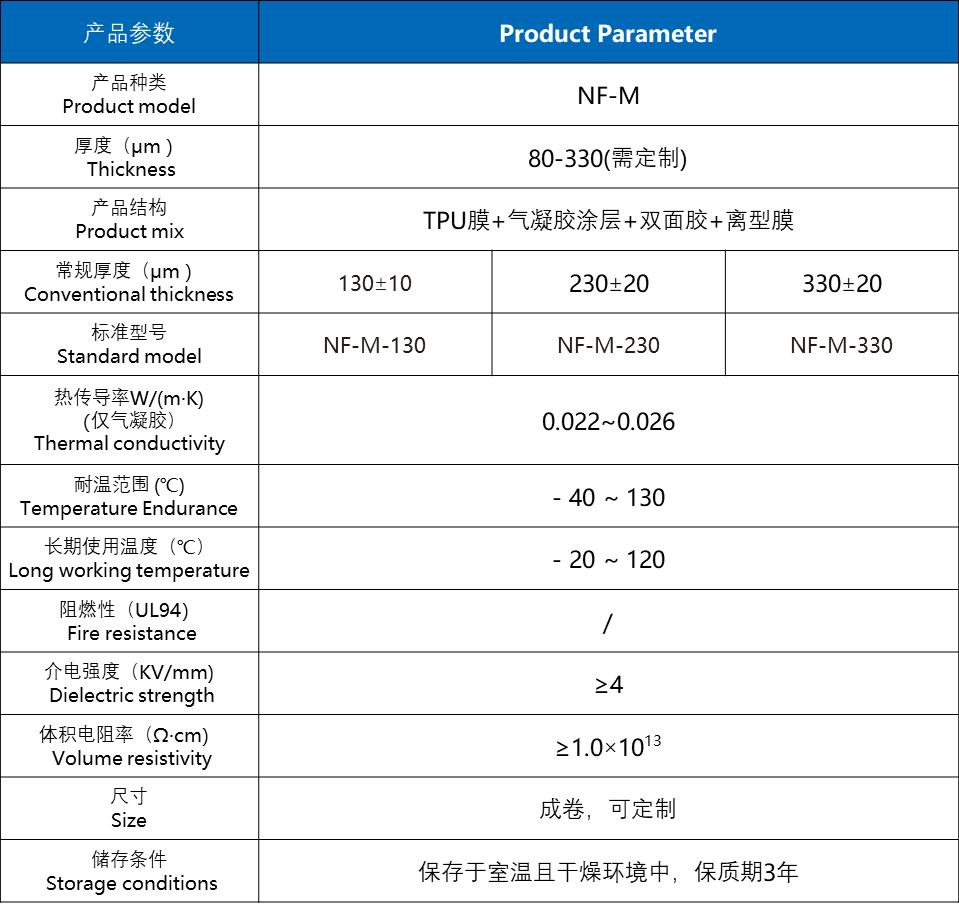

产品特点/Characteristics

热传导率低:0.022~0.0 26W/(m·K)

薄膜化:130 μm,230 μm,330 μm (需定制)

防潮抗氧化

符合ROHS指令

与散热膜复合使用可提供多种热解决方案


Low thermal conductivity: 0.022 to 0.026 W/m·K

Film thickness: 130 μm,230 μm,330 μm (Need to customize)

Moisture and oxidation prevention

Reach ROHS standard

Provide various thermal solutions by combining with thermal radiation film


产品应用/Application

可穿戴式终端

智能手机

笔记本电脑

平板电脑

OLED

智能电视

数码相机

消费电子产品


Wearable terminals

Smart phones

Laptops

Tablets

OLED

Smart TV

Digital cameras

Other consumer electronics products






应用例图:




告用户书:

1.在没有预告的情况下,本文所记载的内容可能会因产品性能改良,产品参数、规格等而有所变更。

2.我公司只对产品是否符合规格给予保证.在使用时一定要先进行测试.确认适合您的使用。

3.本公司的气凝胶产品是面向一般工业用途而开发。

4.本文中的资料是卓纳纳米现有测试手段和测试结果的真实表述。然而,由于每个应用都有其独特性,本产品资料决不能代替用户在试用前进行必要的测试。用户的测试结果是唯一确保本产品适合其特定的应用要求。
